Product Specification

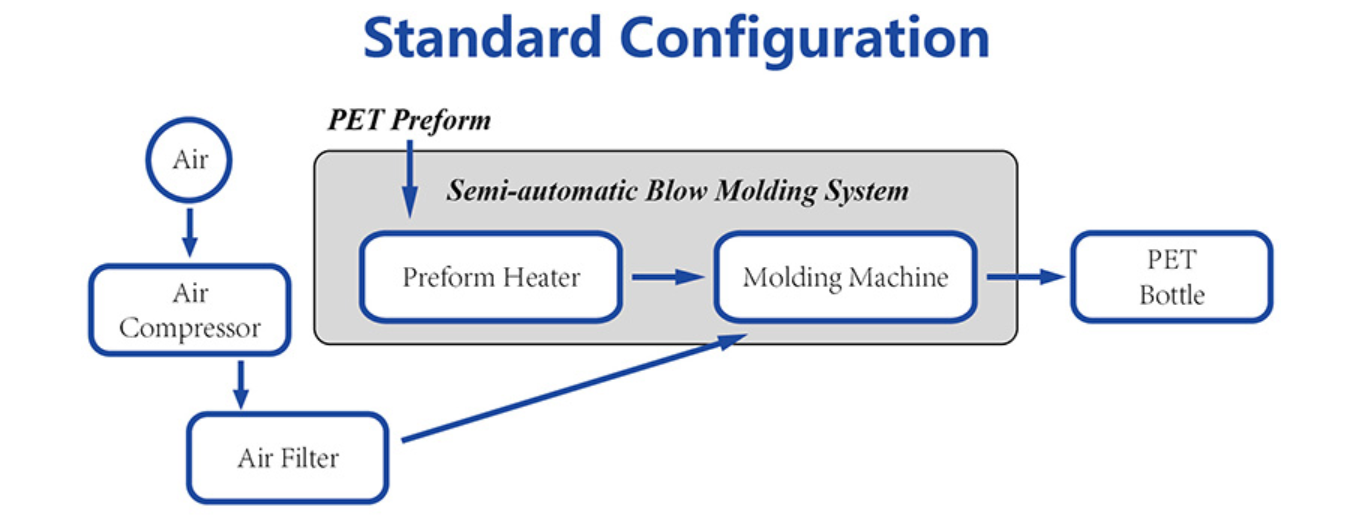

Technical Process
Process Description

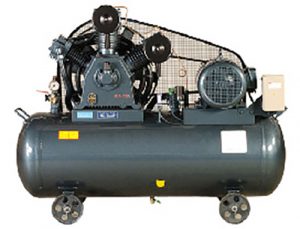

Air Compressor
Air pressure: 1.0m²/ 30kgs
Function: Provides the bottle molding machine enough air
pressure to blow and mold the bottle.

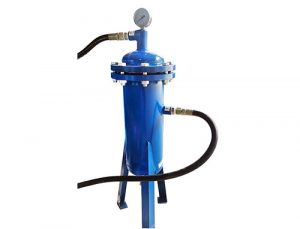

Air Filter
Function: Filter the compressed air to make sure that there is no any dust inside the air.

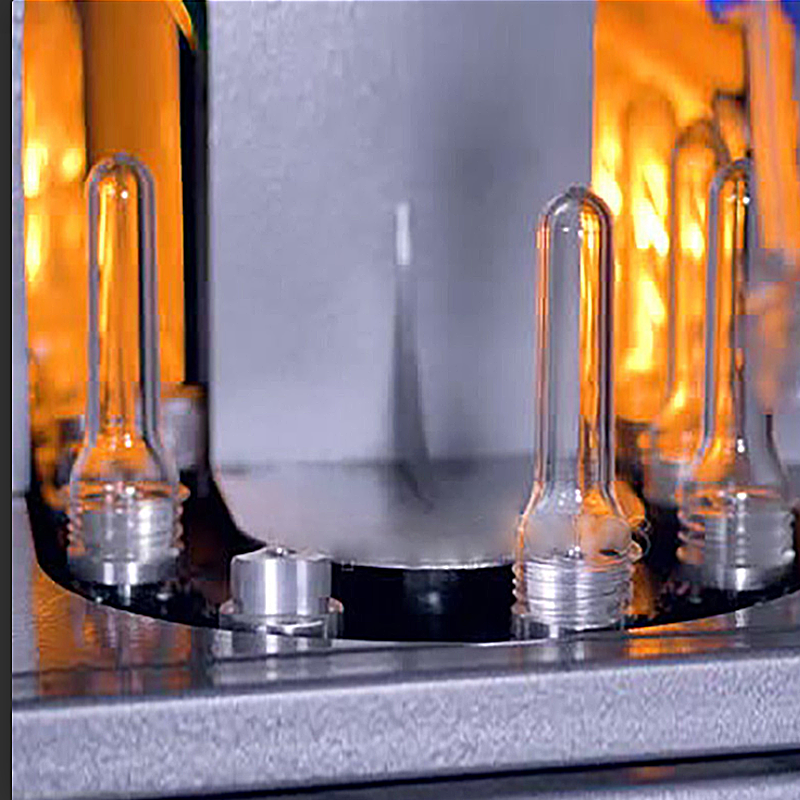

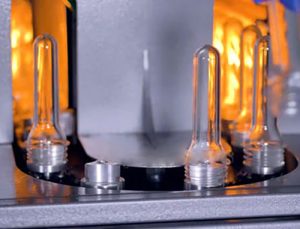

Preform Heating Device
Function: PET bottle Preforms will be placed on the rotary
preform heating device. Then the preforms are heated as
they are sent into the heating device.

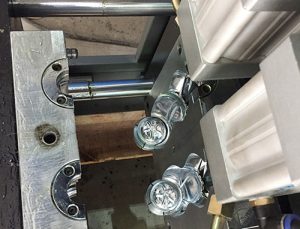

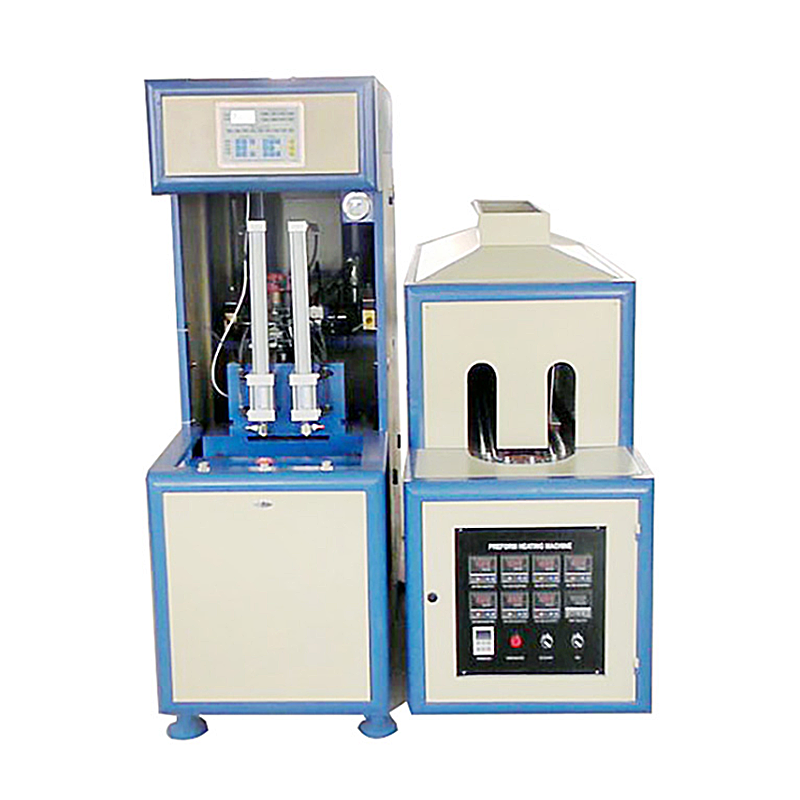

Bottle Blow Molding

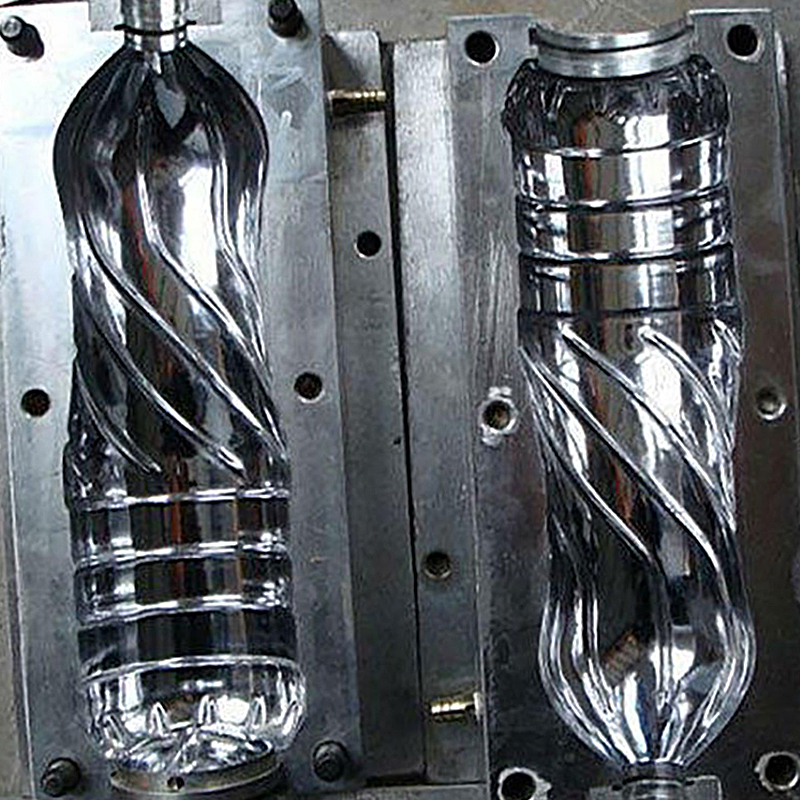

Mold Cavity:
1 cavity for 5 to 10L bottle
2 cavities for 200ml to 3L bottle
Function: The heated preform is placed and fixed in the
opened botle mold. And then the mold close as we press
the start button. Air will be injected into the mold and the
PET bottle is formed.

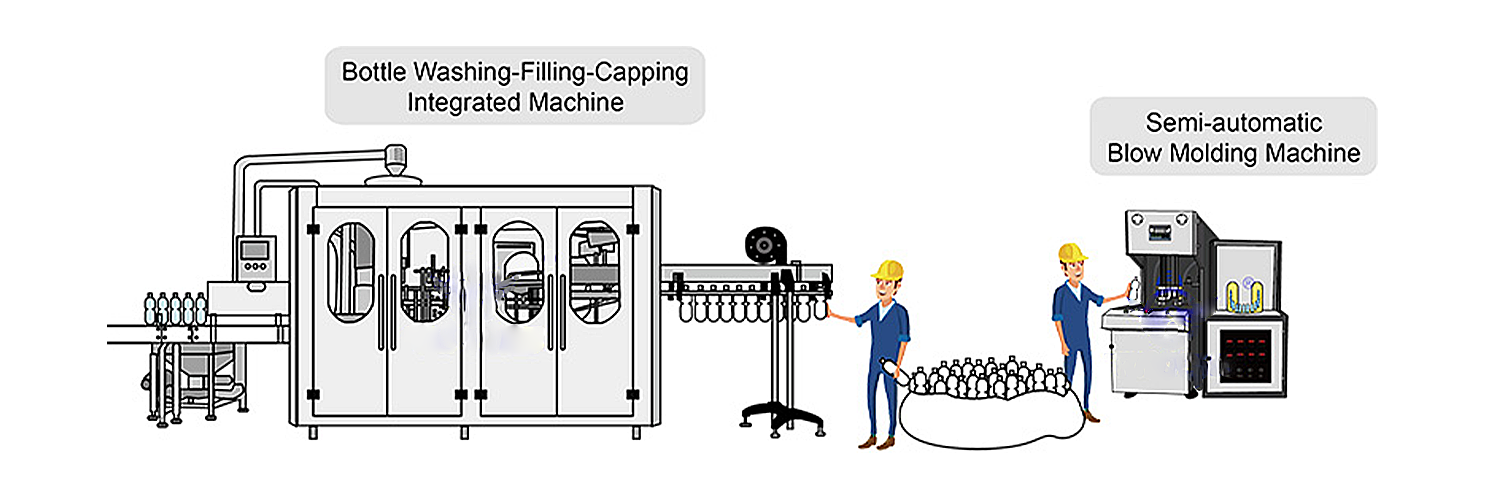

Then the bottle will be used for beverage filling production or the filling of other liquid products.

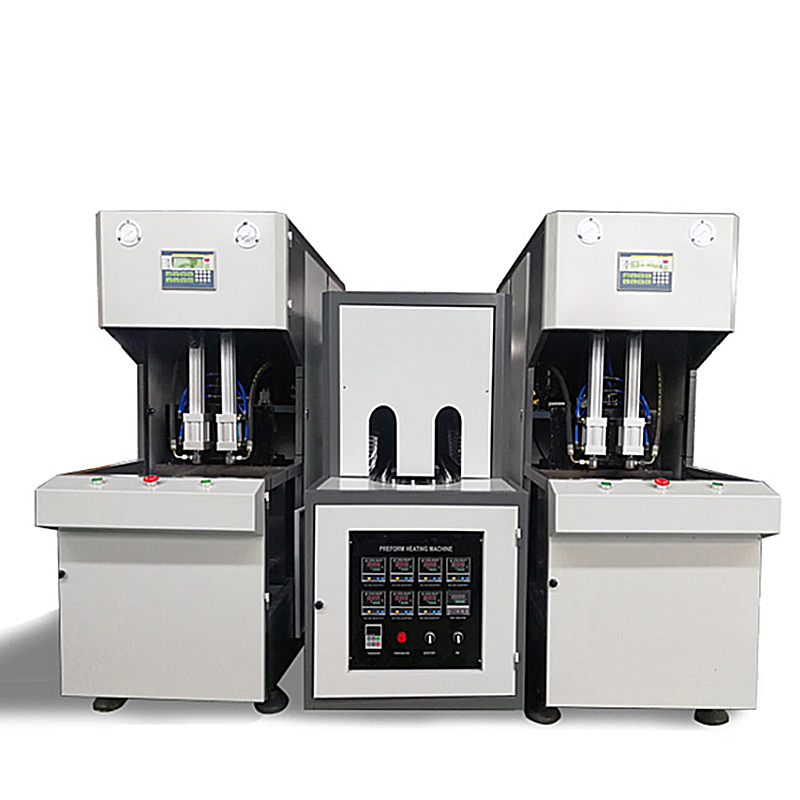

Technical Data
| Model | TS-B-1 |
| Capacity | 600 to 800 BPH (bottles per hour) 200ml to 2000ml bottle |
| Consumable Material | PET preform |
| Working Voltage | 380V/50Hz (Can be customized) |
| General Energy Consumption | 5 to 14kw |
| Blow Molding Machine | 1 Set |
| Preform Heating Device | 1 Set |
| Air compressor | 1 Set, 1.0m3/30kgs |
| Air Filter | 1 Set |
| Bottle Mold | 1 Set, 2 cavities |
| Model | TS-B-II |
| Capacity | 1500 to 1800 BPH (bottles per hour) 200ml to 2000ml k |
| Consumable Material | PET preform |
| Working Voltage | 380V/50Hz (Can be customized) |
| General Energy Consumption | 5 to 14kw |
| Blow Molding Machine | 2 Set |
| Preform Heating Device | 1 Set |
| Air compressor | 1 Set, 1.0m3/30kgs |
| Air Filter | 1 Set |
| Bottle Mold | 2 Set, 2 cavities |
| Model | TS-C |
| Capacity | 300 to 500 BPH (bottles per hour) 3 to 10L bottle |
| Consumable Material | PET preform |
| Working Voltage | 380V/50Hz (Can be customized) |
| General Energy Consumption | 5 to 14kw |
| Blow Molding Machine | 1 Set |
| Preform Heating Device | 1 Set |
| Air compressor | 1 Set, 1.0m3/30kgs |
| Air Filter | 1 Set |
| Bottle Mold | 1 Set |

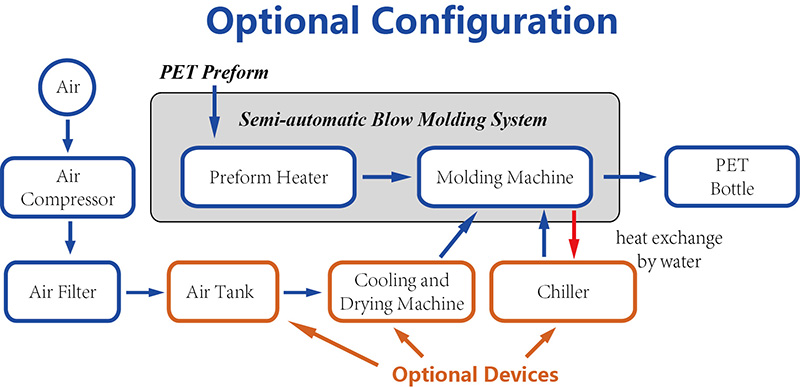

Optional Device
Air Tank
Function: Storing the high pressure air.
Cooling and drying machine
Functions: Cooling and drying the air before it is compressed into the molding machine.
Chiller
Functions: Cooling the molding machine by water circle, so as to prevent the molding machine from over-heated after long time working.
