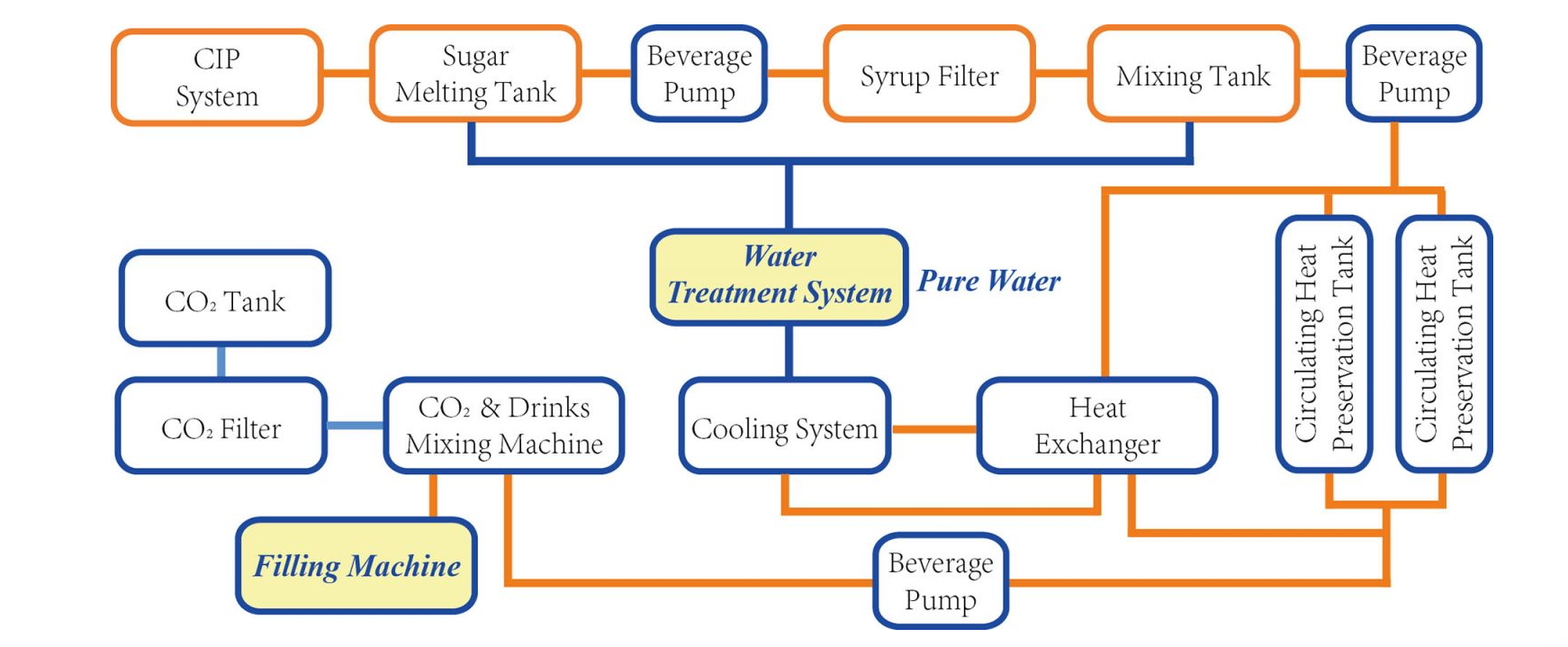

General Process Flow Chat
Solutions canbe slightly diferent because the beverage kinds, production capacity, equipment quantity will be different. So it depands on customers' actual situations.
Equipment and process introduction
Sugar Melting Tank
Juice Pump
Syrup Filter
Material: stainless steel 304/316, nickel not less than 8%
Function: The device melts the sugar by heating and mixing water.
Material: Stainless Steel 304/ 316
Function: The device provides sufficient pressure for pumping juice from one device to the other.
Material: Stainless Steel 304/316
Function: The device filters the sugar that is not melted in the syrup from the sugar melting tank
Mixing Tank

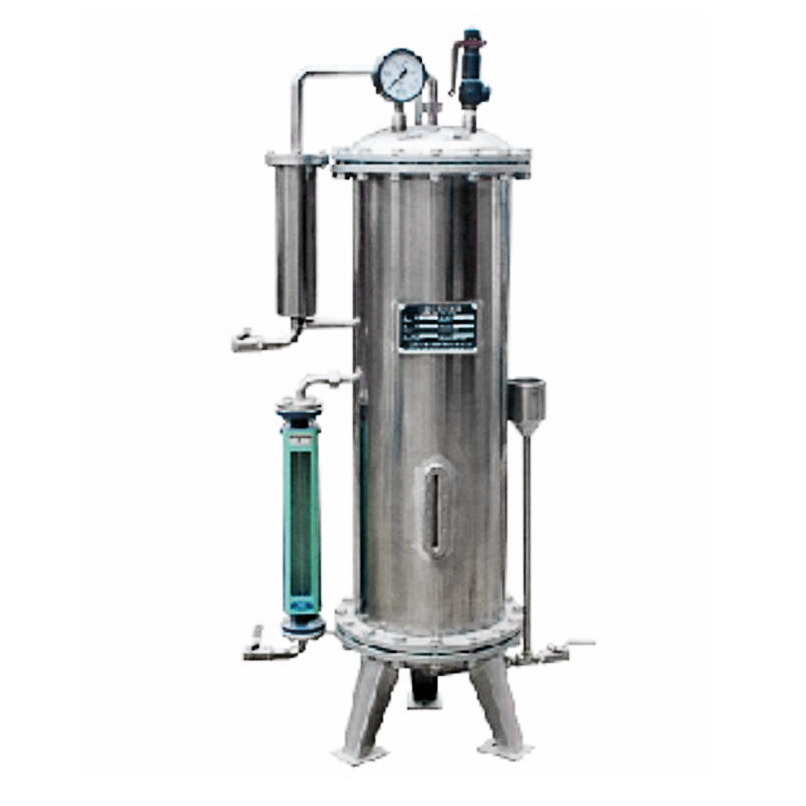

Carbon Dioxide Filter
Heat Preservation Tank
Material: Stainless Steel 304/ 316
Function: Syrup, water and other materials are fully mixed in the mixing tank.
Material: Stainless Steel 304/ 316
Function: The Device filters the carbon dioxide, so that no dust will entre the mixing system.
Material: Stainless Steel 304/ 316
Function: The device preserve the juice temperature with circulation of beverage flow.

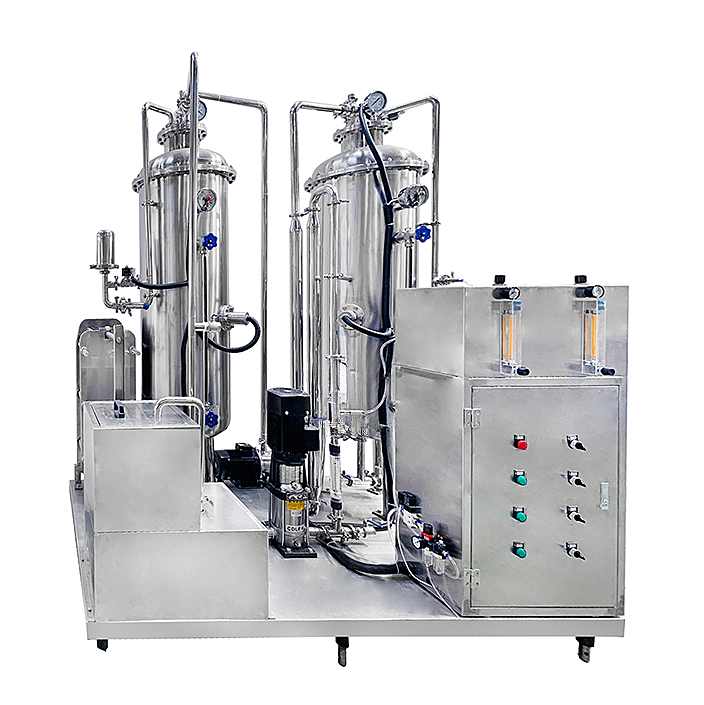

CO2 and Drinks Mixing Machine

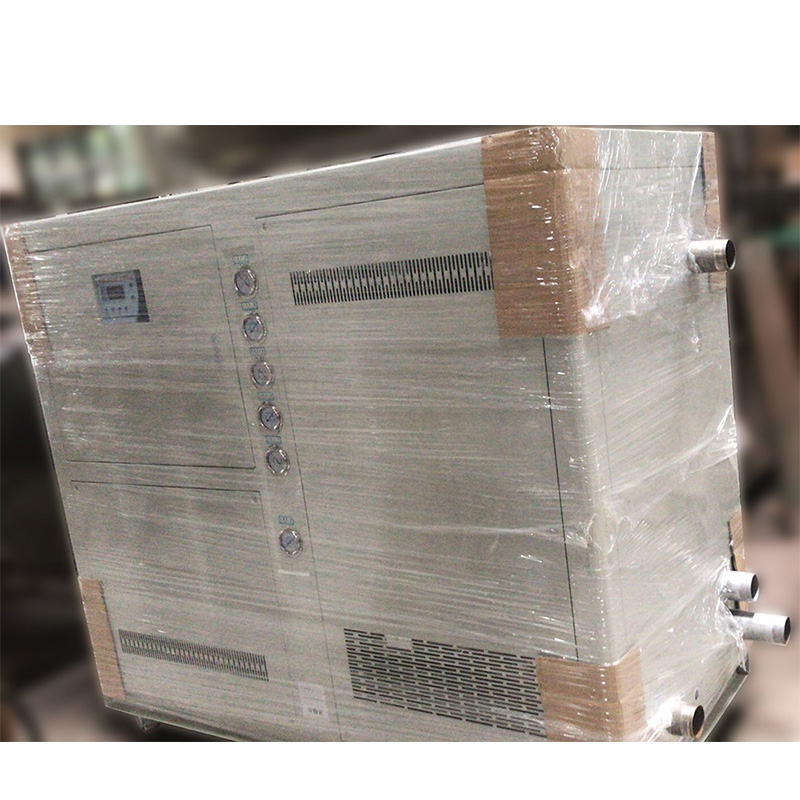

Chiller

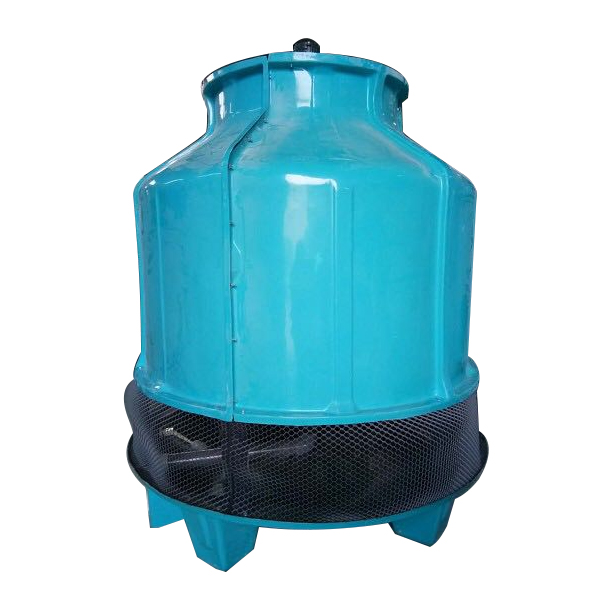

Cooling Tower
Material: Stainless Steel 304/ 316
Function: This device mixes the beverage and carbon dioxide together.
Function: The Machine is for fast chilling the high temperature of the beverage. (cooling system)
Function: This machine is together with the chiller. (cooling system)

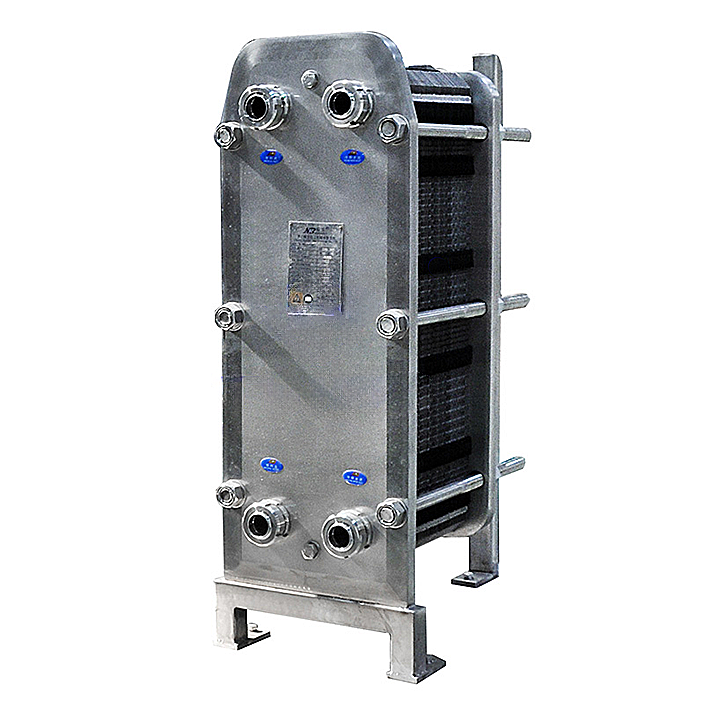

Heat Exchanger
CIP Cleaning System
Customized Working Platform
Material: Stainless Steel 304/316
Function: This device exchanges the temperature between the hot and chill bevergae, so as to make the heated beverage cool down slowly.
Material: Stainless Steel 304/ 316
Function: The Machine is for cleaning the inner parts of all machine and tubing for the whole mixing system with detergent and high pressure water flow.
Material: Stainless Steel 304/ 316
Function: This platform is specially used for operating
all equipment in the mixing system. It can be customized according to your requirement.
