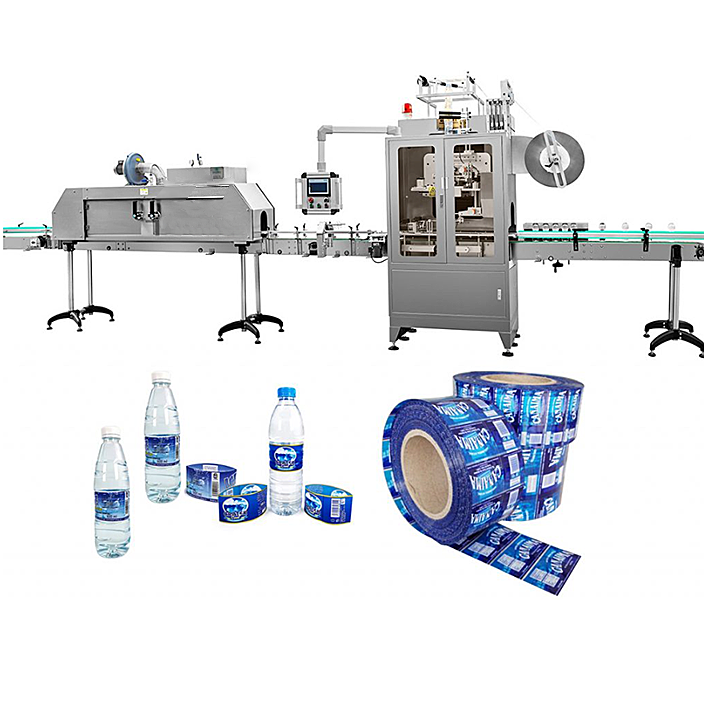

Automatic Shrink Sleeve Labeling Machine
Model No.:TS-150B, TS-250B, TS-350B
Specification
Technical parameters
| Length of the equipment | 7 meters or more (7m conveyor belt, length can be customized) |
| Size of the sleeve label machine | 2000x900x2450mm |
| Power of sleeve label machine | 1.5 to 2.5kw |
| Power of steam shrinking machine | 15 to 30kw |
| Production Capacity | 9000 to 21000 bottles/hour |
| Suitable label type | PVC label |
| Label length | 30 to 200mm |
| Label thickness | 0.03 to 0.05mm (other thickness can be used, but not recommended) |
| Bottle height | 150 to 350mm |
| Bottle diameter | 50 to 104mm (bigger size can be customized) |
Process Flow
sleeve label -steam shrinking-label fixed on the bottle
