Product Specification

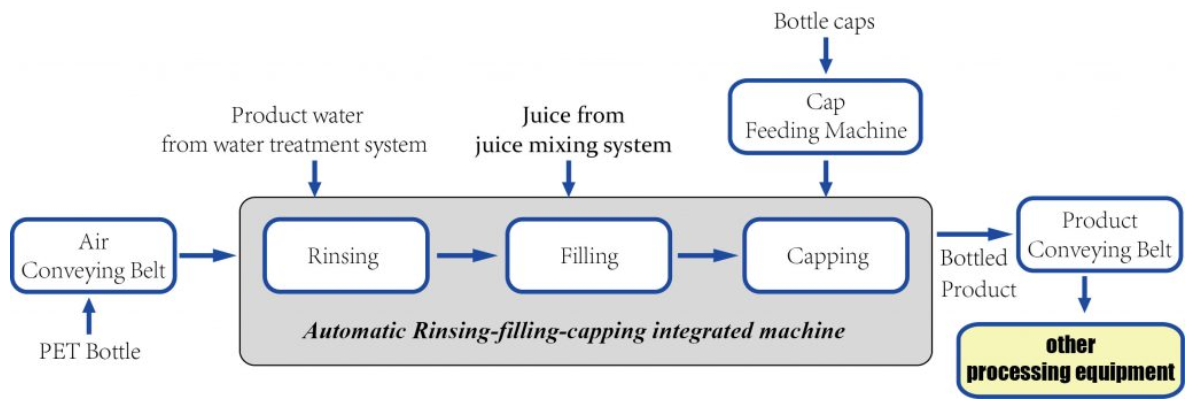

Technical Process
Process Description
Air Conveying Belt
Material: stainless steel 304/316, nickel not less than 8%
Function: The device conveys the PET bottle to the filling
machine with blowing power from fan.
Rinsing Part
Material: stainless steel 304/316, nickel not less than 8%
Working Way: rotary rinsing
Function: After the PET bottle have been conveyed into the
filling machine, rinsing pliers will carry and fix the bottles to
the rinsing nozzles. Then after the rinsing of spraying water
from the high pressure rinsing nozzles, the bottles are ready
to be sent to the filling part.
Filling Part
Material: stainless steel 304/316, nickel not less than 8%
Function: After the PET bottle have been rinsed, the rotary
transmission plate between the rinsing and filling parts will
transmit the bottles to the filling part. Then the bottle will be
fixed and fully filled precisely in equal volume of water by
high pressure spraying filling nozzles. And then the filled
bottles will be transmitted to the capping part.
Capping Part
Material: stainless steel 304/316, nickel not less than 8%
Function: The filled bottles are capped by the rotating
capping head. Then the finished products will be conveyed
out of the filling machine by the product conveying belt.
Cap Feeding Device
Material: stainless steel 304/316, nickel not less than 8%
Function: This device feeds caps into the capping part of
the filling machine
Product Conveying Belt
Main Material: stainless steel 304/316, nickel not less than
8%
Function: The product conveying belt conveys the filled and
capped water out of the filling machine and transmit them
to other processing equipment of the production line.
Lamp Checking Box
Main Material: stainless steel 304/316, nickel not less than
8%
Function: help to check if there is any impurity in the
bottled water products, when the products pass by as they
are being transmitted out of the filling machine.
Touch Screen PLC Control
Imported touch screen PLC famous brand ensures stable
and high efficient working, easy operating as well as
durability of the filling machine.
Technical Data
| Model | XGF50-50-12 |
| Capacity | 20000 to 22000 BPH (bottles per hour) subject to 500ml bottle |
| Suitable Bottle Volume | 200ml to 2000ml |
| Working Voltage | 380V/50Hz (Can be customized) |
| Filling Precision | < ±5mm (liquid level) |
| Filling Method | normal pressure and temperature |
| PET Bottle Specification | bottle diameter:4p50-φ100mm, Height 150-320mm |
| Suitable Cap Type | plastic screw cap |
| Water Pressure For rinsing bottle | 0.3Mpa |
| Water Consumption For Washing Bottle | 1000L |
| Gas Source Pressure | 0.7Mpa |
| Gas Consumption | 1m²/min |
Main Features of The Machine
Bottle rinsing-filling-capping integrated processing
Famous brand Touch screen PLC control
Output auto-counting
Liquid level instruction, auto-stop when it is rack of liquid
Bottle caps automatically feeding, auto-stop when run out of caps
Auto-stop when run out of bottles
Inner auto-wash of the machine
Auto-cooling system ensures no overheat happen inside the whole machine
Optional protection system: warning and auto-stop when protective door is not closed
More Capacity Choices for The Model
| No. | Model Number | Capacity |
| 1 | XGF8-8-3 | 2000 to 2500 BPH |
| 2 | XGF14-12-5 | 3000 to 4500 BPH |
| 3 | XGF18-18-6 | 6000 to 8000 BPH |
| 4 | XGF24-24-8 | 10000 to 11000 BPH |
| 5 | XGF32-32-10 | 12000 to 13000 BPH |
| 6 | XGF40-40-10 | 15000 to 16000 BPH |
| 7 | XGF50-50-12 | 20000 to 22000 BPH |
Optional Device
Cap Washing & sterilizing device
Main Material: stainless steel 304/316, nickel not less than 8%
Function: As the Elevator cap feeding machine conveys the bottle caps up and the caps pass through the cap washing and sterilizing device. Then the device will wash and sterilize the caps with water who has been mixed with Ozone.
The whole Device Diagram (just for reference)
