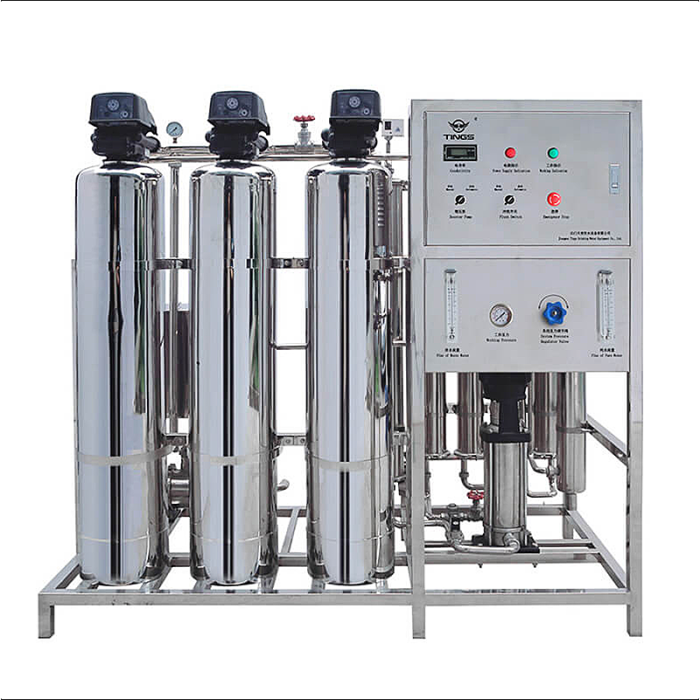

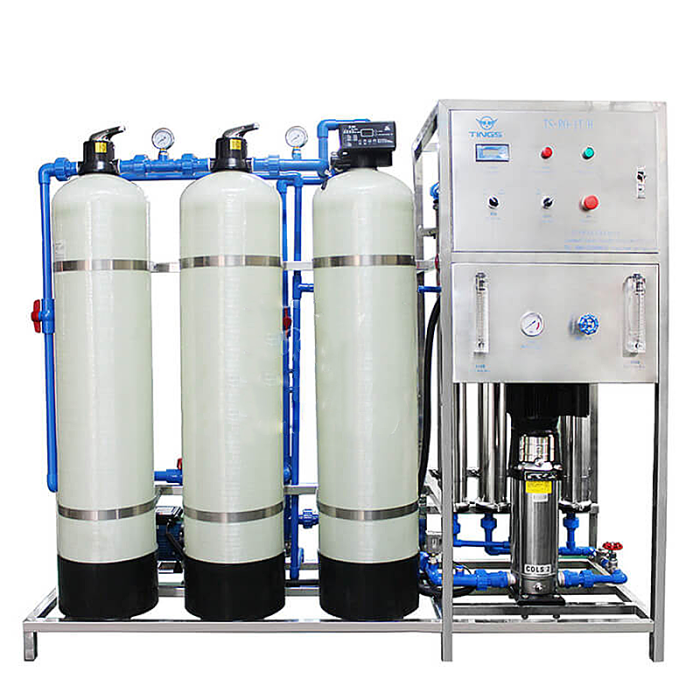

RO Reverse Osmosis Water Treatment PlantModel
No.:TS-RO-1T

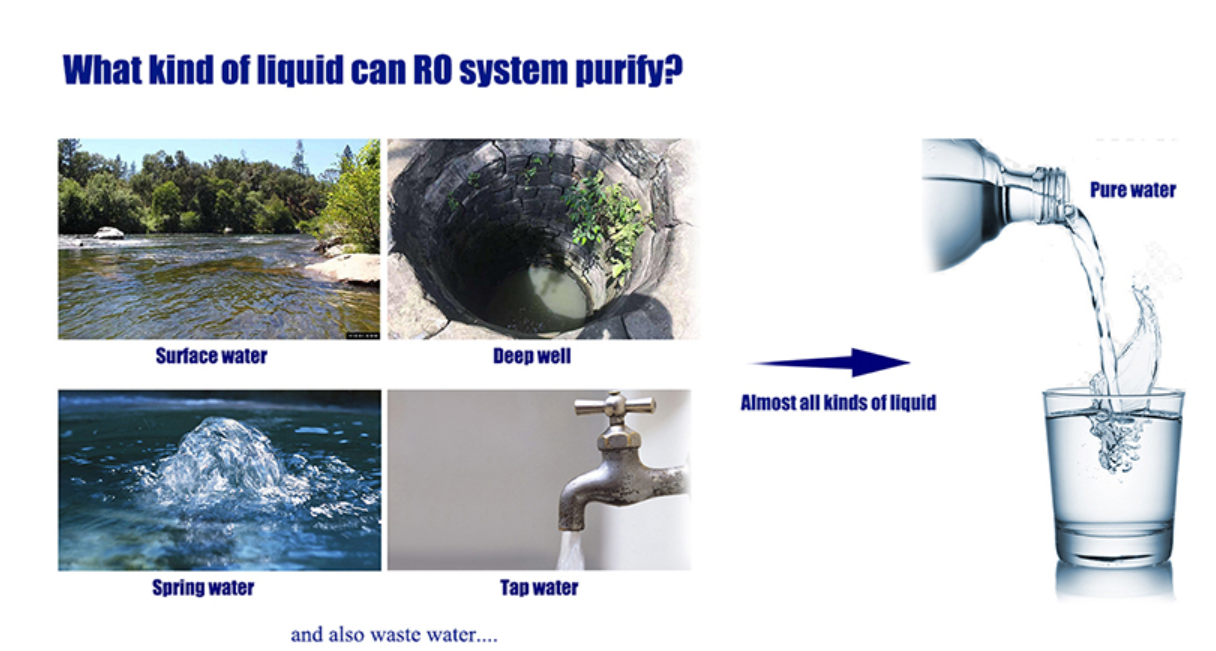

The RO (Reverse Osmosis) water treatment plant removes unwanted particles (salts), hardness, microorganism and
impurities in the water in order to improve the color, odour, taste or properties of the fluid.
The product water is pure water for a specific use, such as daily use, direct drinking, industrial water use, commercial beverage production (bottled water, juice, tea, carbonated
drinks, wine, beer, etc.), cosmetic production, food proces sing, hotels and restaurants, pharmaceutical and hospital use, and so on.
Product Specification

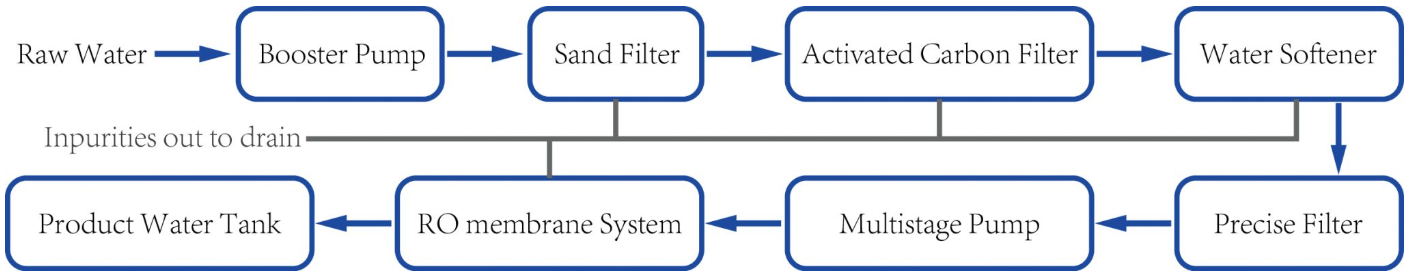

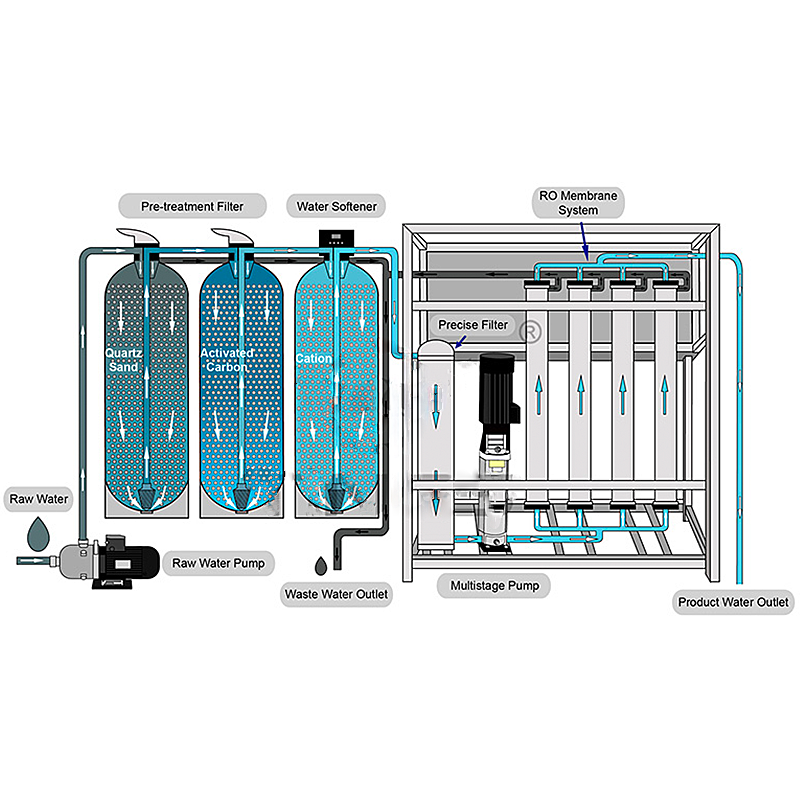

Process Description

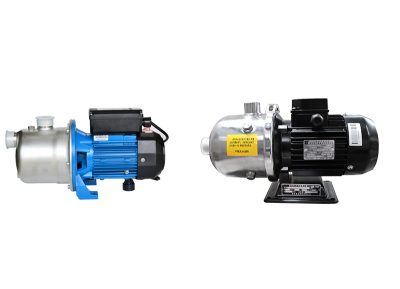

Booster Pump
The device provides stable water source and pressure to the back-end treatment system.

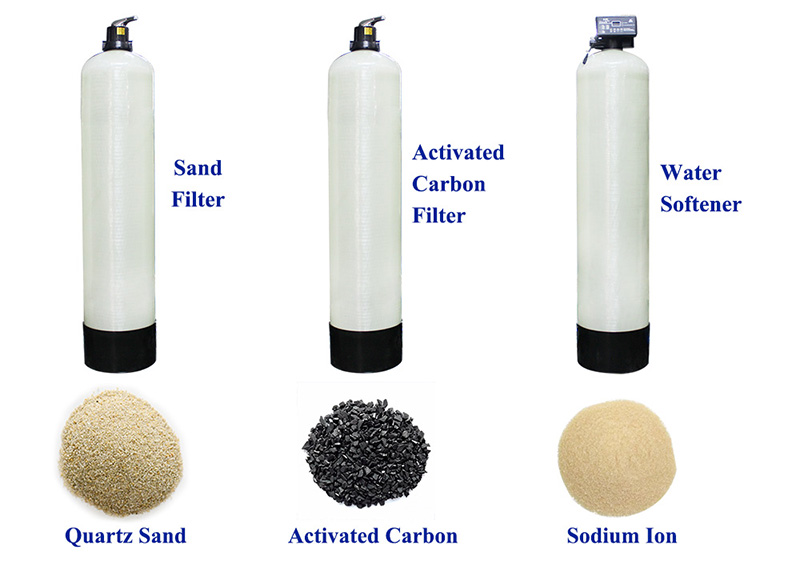

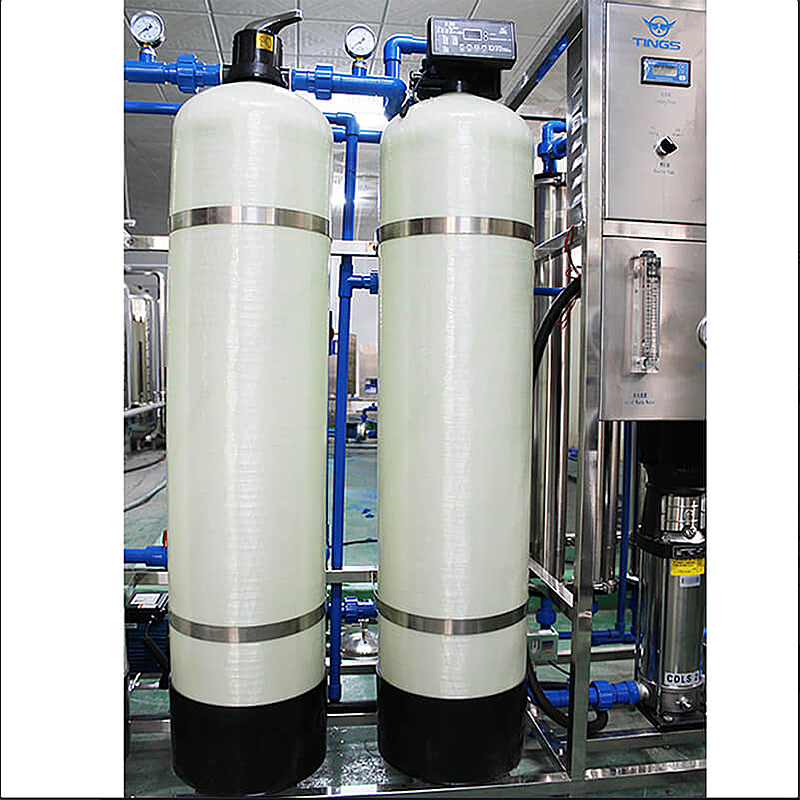

Prefilters
Sand Filter
The device filters the impurity substance and disposes of the divalent iron and manganese ion in the raw water.It is lequipped with automatic control valve, which can discharge the sediment by its automatic back washing function.
Activated Carbon Filter
This filter removes the colors and smells of the raw water to improve the water's flavor.
Water Softener
This device soften the water by oxidizing the calcium ion and magnesium ion in the raw water with cation.
Precise filter
With the filtering accuracy of ≤5um, the precise filter can
filter the particle impurity substance in the raw water from the front-end filters. It can prevent impurity substance from flowing into and thus blocking up the reverse osmosis
membrane system, so as to decrease power consumption
more effectively.
Multistage pump
This device gives stable water supply and sufficient pressure to the reverse osmosis membrane system.
Reverse osmosis membrane system
This device filters the substances such as bacteria and ions in the water.
And the quality of product water after filtration will be
much higher than that of standard daily drinking water.

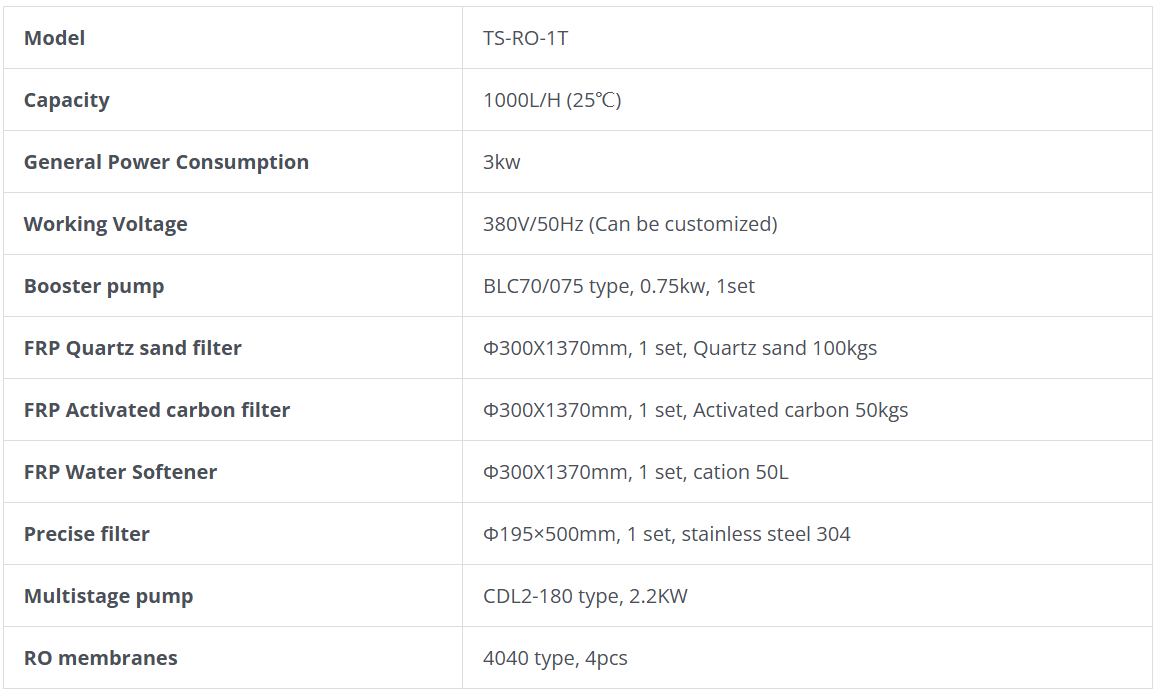

Technical Data

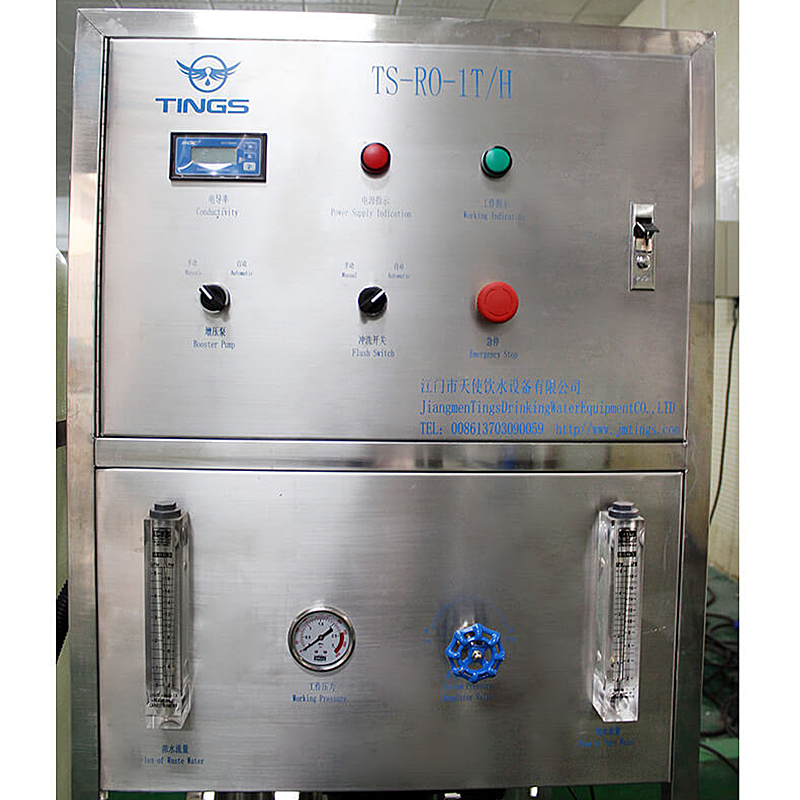

Functions of The Machine
RO membranes auto wash and manual wash
Auto stop on high pure water level, auto start on low pure water level
Multi-phased pump can prevent the system from water shortag

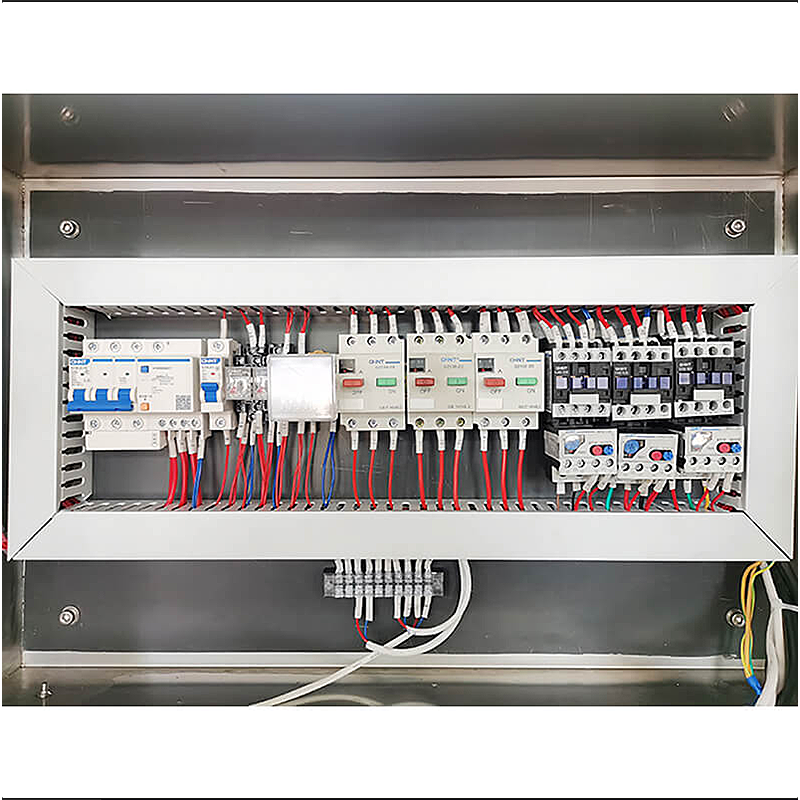

Protection of power-off, under voltage, excessive current, short circuit, leakage of electricity.
More Capacity Choices for The Model
| No. | Model Number | Capacity | |
| 1 | TS-RO-0.25T | 250L/H (0.25M²) | |
| 2 | TS-RO-0.5T | 500L/H (0.5M3) | |
| 3 | TS-RO-0.7T | 700L/H (0.7M3) | |
| 4 | TS-RO-1T | 1000L/H (1M3) | |
| 5 | TS-RO-2T | 2000L/H (2M3) | |
| 6 | TS-RO-3T | 3000L/H (3M3) | |
| 7 | TS-RO-4T | 4000L/H (4M3) | |
| 8 | TS-RO-5T | 5000L/H (5M3) | |
| 9 | TS-RO-6T | 6000L/H (6M3) | |
| 10 | TS-RO-8T | 8000L/H (8M3) | |
| 11 | TS-RO-10T | 10000L/H (10M3) | |
| 12 | TS-RO-12T | 12000L/H (12M3) | |
| 13 | TS-RO-15T | 15000L/H (15M3) | |
| 14 | TS-RO-20T | 20000L/H (20M3) | |
| 15 | TS-RO-25T | 25000L/H (25M3) | |
| 16 | TS-RO-30T | 30000L/H (30M3) | |
| 17 | TS-RO-50T | 50000L/H (50M3) |
Optional Device
Dosing Machine
Function:
By dosing flocculant into the water, it enhance the sediment
of the unwanted impurities and colloidal matters, etc.
By dosing scale inhibitor into the water, it prevents the
Calcium and magnesium ion from forming scale, so as to
protect the membrane filtration system.
By dosing PH adjusting agent, it changes the water PH value
into the ideal result
UV Sterilizing device
Main Material: stainless steel 304
Function: sterilize the bacteria in the water
Capacity: 200oL per hour

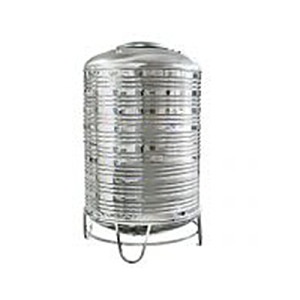

Stainless Steel Water Tank
Material: stainless steel 304
Function: Raw water or product water storing
It is better to connect with a ozone machine to sterilize the bacteria in the water.
Volume: 1000L to 5000L or more
Tings Ozone Machine
Material: stainless steel 304
Ozone output: 3 to 32g/H
Function: to produce ozone and pump it to the water tank or ozone mixing tower,
so that the ozone can fully sterilize the disinfect the water in the mixing
circulation process.
Ozone Mixing Tower
Material: stainless steel 304
Function: fully mixing of the ozone and water, making it the best ozone sterilizing
effect
Application
Mineral Water Production Industry
Soft Drink Production Industry
Wine Production Industry
Daily Drinking Water
Irrigation
Pharmaceutical Industry
Cosmetic Industry
Food Processing Industry
Paper-making Industry
Other industries, such as hotel and restaurant, car-making industry, iron-making industry, and waste water treatment, etc.
